Heritage Sash Windows

Our new timber Heritage Sash Windows have been carefully designed to suit listed buildings and traditional properties in conservation areas

Mindful of the importance of preserving the architectural character of our historic buildings, we have replicated the classic slim design and period detailing you see on many of the original old-style windows.

Our meticulously crafted Heritage Sash Windows feature:

  • A 40mm mid-rail
  • 14mm heritage double glazing
  • 9mm external beading
  • 24mm solid through-bars
  • Traditional, premium hardware
  • 160mm frame depth

We offer two different opening mechanisms to suit the style and age of your property; Cords and Weights and Spiral Balance.

All our Heritage Sash Windows are made-to-measure to modern performance standards, with 14mm double ‘heritage glazing’ and timber from sustainable sources.

By drawing on our 200 years of timber craftsmanship, we believe we have achieved the perfect balance between meeting modern lifestyles and creating a truly authentic look.

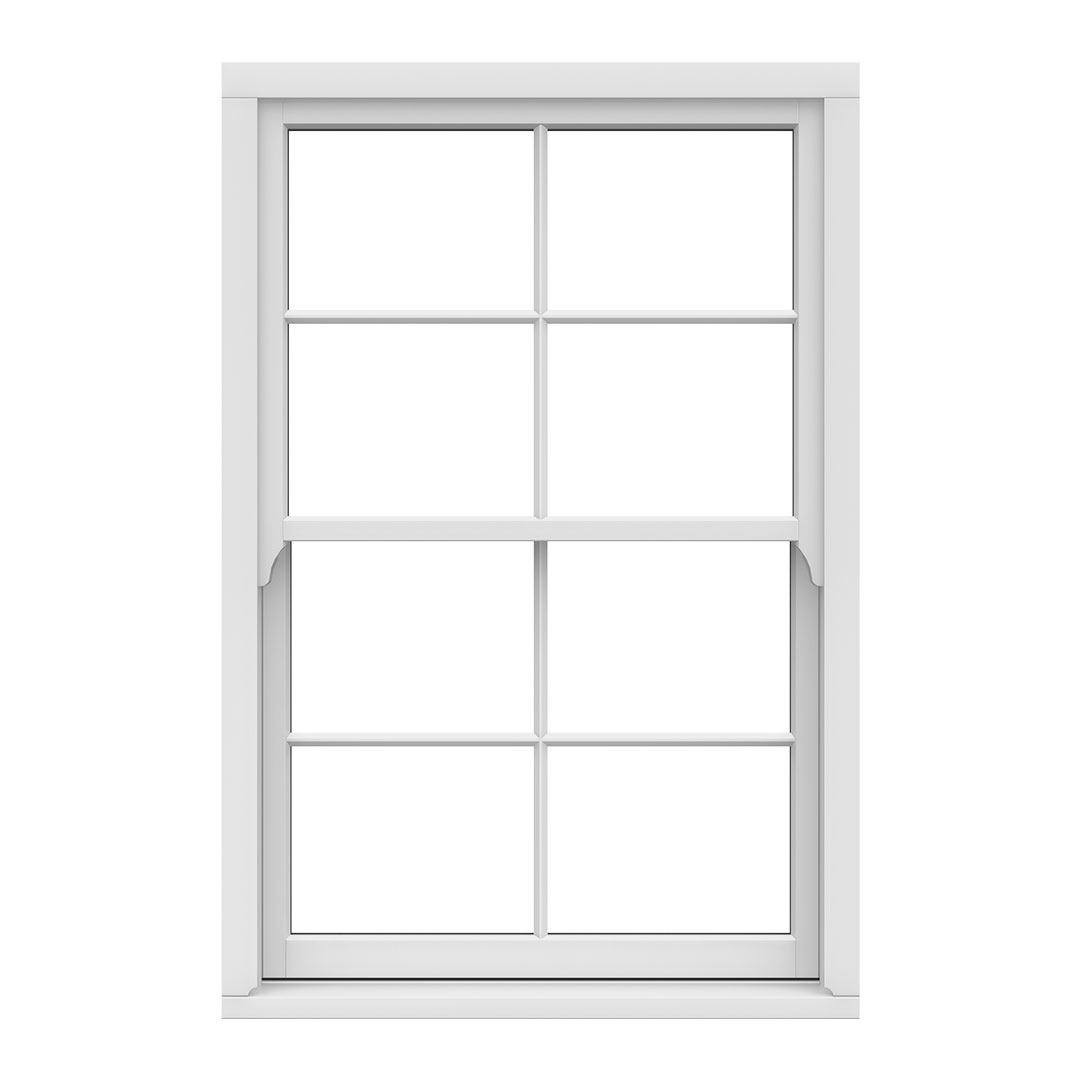

Heritage Sliding Sash Windows – Spiral balance

Spiral Balance

A modern alternative that operates smoothly through pre-tensioned springs discreetly hidden within the timber frame. These are particularly well-suited for properties with smaller reveals or restricted spaces.

Cords and Weights

– A refined version of the old-fashioned pulley mechanism often found in Georgian, Victorian, and Edwardian homes.

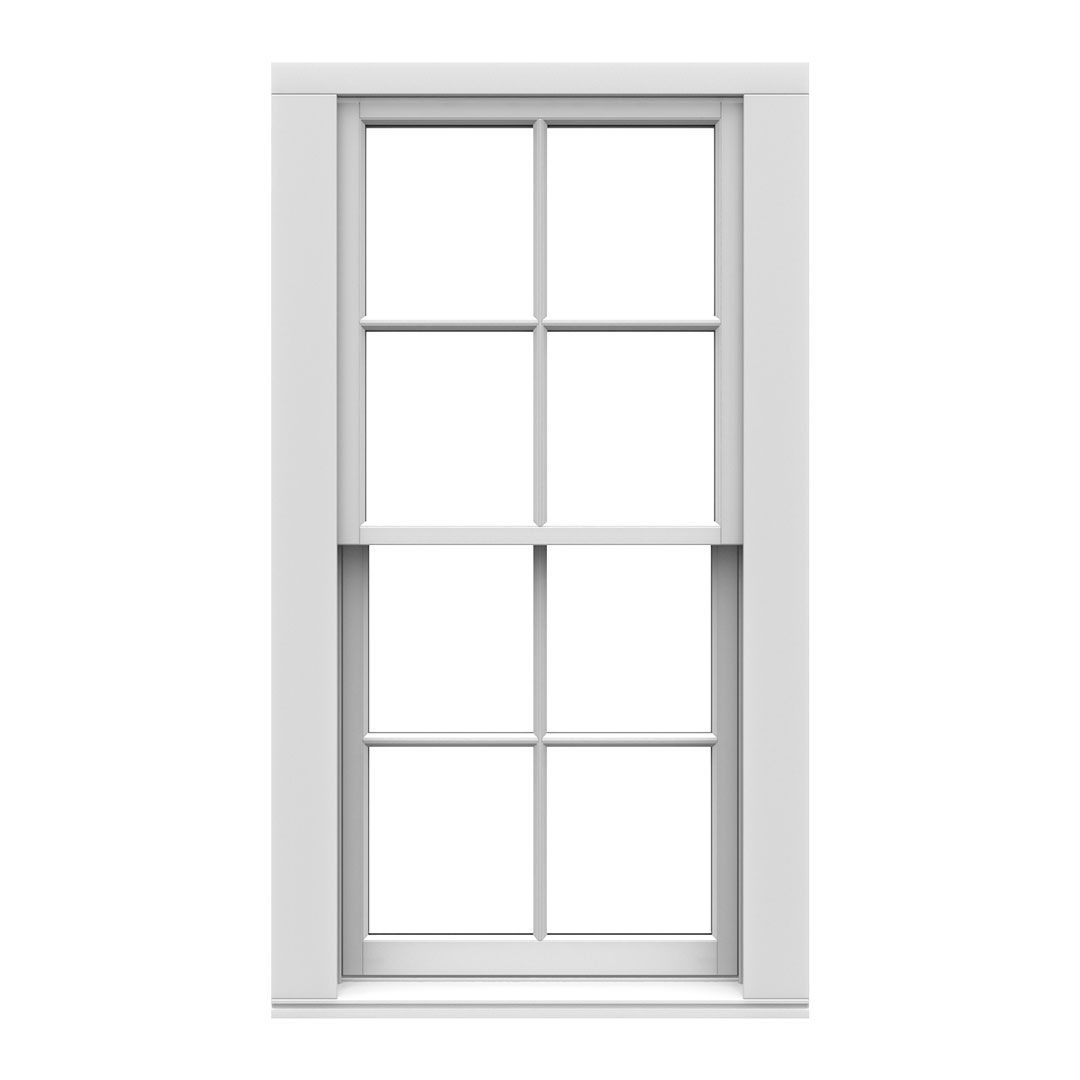

Heritage Sliding Sash Windows – Cords & Weights

Design Options

Horns

Horn options A and C are available on top sashes.
Horn option A available for bottom sash.

  • Horn Option A

    Horn Option A

  • Horn Option C

    Horn Option C

Hardware

Hardware / Hinges Traditional, suited Sliding Sash hardware from Pickard.
Available in Polished Brass (Gold) and Polished Chrome.

  • Sash stop & strike plate

    Sash stop & strike plate

  • Sash lift

    Sash lift

  • Fitch fastener (non-locking)

    Fitch fastener (non-locking)

  • Fitch fastener (Locking)

    Fitch fastener (Locking)

Glass

Double Slimline Heritage Glazing – 14mm (4-6-4)

  • Float glass (standard non toughened both sides) Standard Ug is 2.1 W/m²K
  • Toughened (toughened both sides) Standard Ug is 2.1 W/m²K

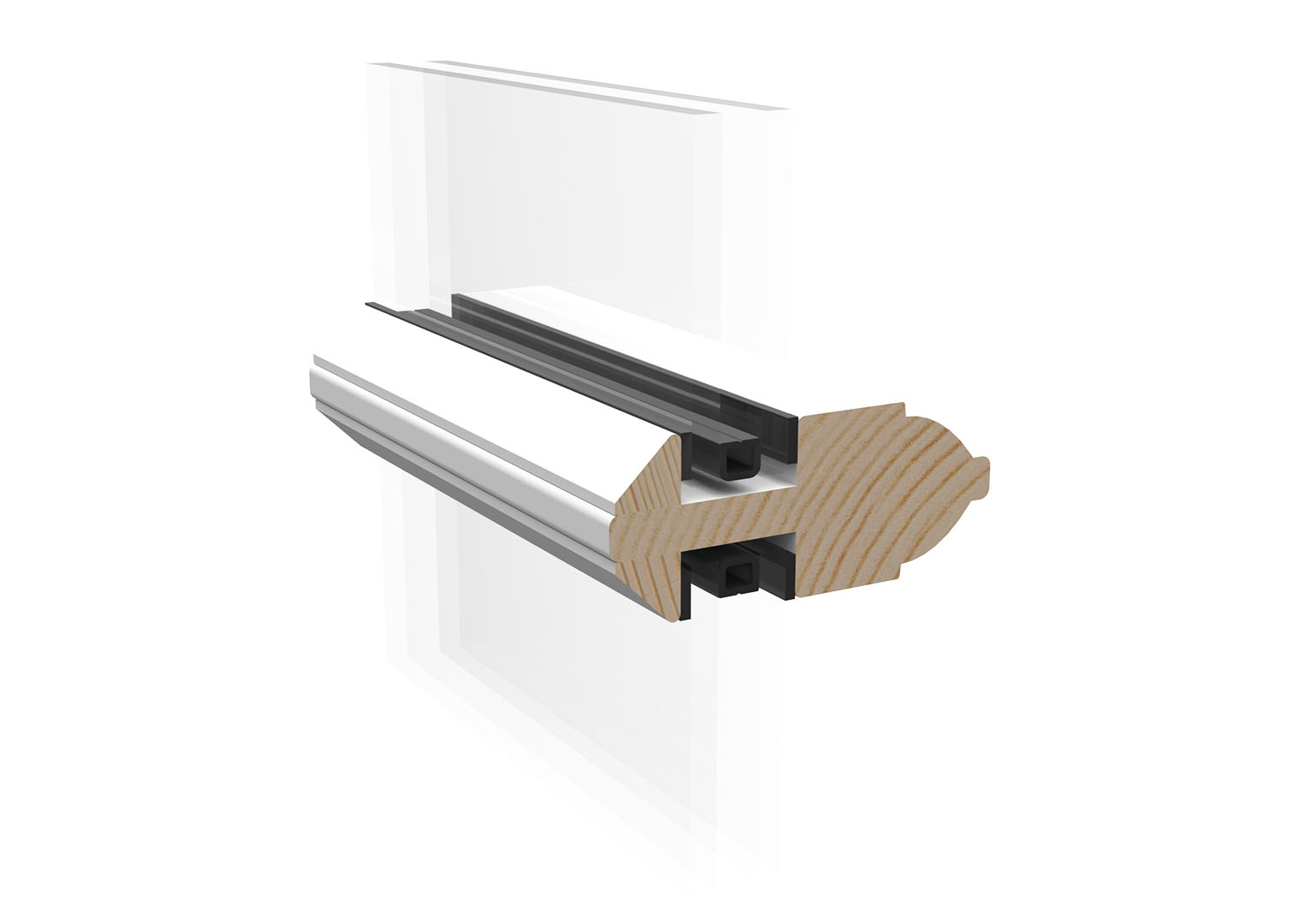

Solid bar

The bar for the Heritage Sliding Sash window is a solid 24mm through bar. The bar is made from timber.

  • Solid bar - 24mm

    Solid bar - 24mm

Colours

Our standard colour and stain choices – many more available.

  • Traffic White 9016

    Traffic White 9016

  • Pure White Ral 9010

    Pure White Ral 9010

  • Cream White 9001

    Cream White 9001

  • Agate Grey 7038

    Agate Grey 7038

  • Pebble Grey RAL 7032

    Pebble Grey RAL 7032

  • Pastel Turquoise RAL 6034

    Pastel Turquoise RAL 6034

  • Chartwell Green NS3010-G 20 Y

    Chartwell Green NS3010-G 20 Y

  • Chocolate Brown RAL 8017

  • Antracite Grey 7016

    Antracite Grey 7016

  • Jet Black 9005

    Jet Black 9005



STANDARD STAIN FINISHES:

  • Mahogany

    Mahogany

  • Cyprus Light Oak

    Cyprus Light Oak

  • Teak

    Teak
